Raw Mill Reducer: Selection Guide for Cement Raw Grinding Drives

The right raw mill reducer matches your mill's drive arrangement, output torque, and service factor. For edge-drive raw mills, the MBY and MBYX series are the standard choice. For center-drive layouts, the JDX series handles the higher radial loads. If your mill dimensions or duty cycle fall outside catalog ratings, a custom-engineered reducer is the safer path.

Raw mills are the hardest-working drives in a cement plant's front end. They grind limestone, clay, and additives into raw meal around the clock, absorbing constant impact from tons of grinding media. When a raw mill reducer fails, the whole kiln feed stops. There's no bypass and no quick fix.

This guide explains what a raw mill reducer does, how edge-drive and center-drive arrangements differ, and how to size and select a unit that survives continuous cement duty. By the end, you'll know exactly which parameters to send a supplier and which series fits your mill.

Key Takeaways

• A raw mill reducer converts high-speed motor power into the slow, high-torque rotation a raw grinding mill needs, typically 12-25 rpm drum speed.

• Edge-drive raw mills use MBY or MBYX series reducers; center-drive mills use the JDX series.

• Size the reducer on output torque and a service factor of 1.5-2.5, not motor power alone.

• Case-hardened alloy steel gears (HRC 58-62), rigid housings, and precision-ground tooth profiles are the markers of a reducer built for raw mill duty.

• Retrofits, non-standard footprints, and extreme ambient conditions usually justify a custom reducer.

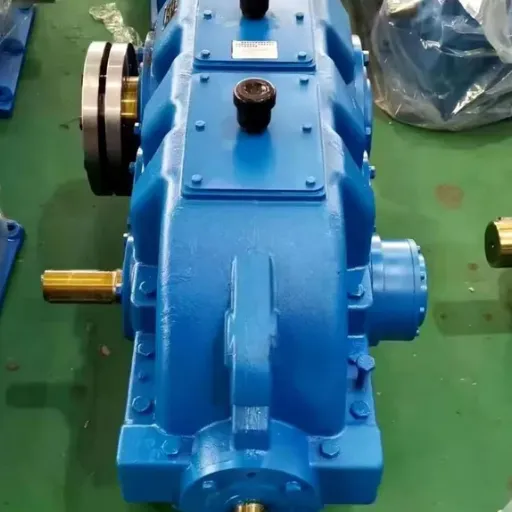

What Does a Raw Mill Reducer Do?

A raw mill reducer sits between the motor and the grinding mill. Its job is to take a motor spinning at 740, 990, or 1,480 rpm and reduce that to the drum speed a raw mill needs, usually somewhere between 12 and 25 rpm. In doing so, it multiplies torque dramatically.

That torque has to overcome a brutal load. A raw mill drum is heavy, and the grinding media inside it create continuous impact and vibration. The reducer must handle:

• High, sustained torque over long duty cycles, often 24/7 operation

• Shock loads from media movement and uneven material feed

• Thermal stress from continuous running with little cool-down time

• Deflection and misalignment transmitted from the mill body and foundation

Because of these demands, raw mill reducers are purpose-built heavy-duty units. They're not interchangeable with general-purpose industrial gearboxes, even when the ratio looks the same on paper.

Edge Drive vs. Center Drive: Know Your Arrangement

The first question in raw mill reducer selection is the mill's drive arrangement. This determines which reducer series you need.

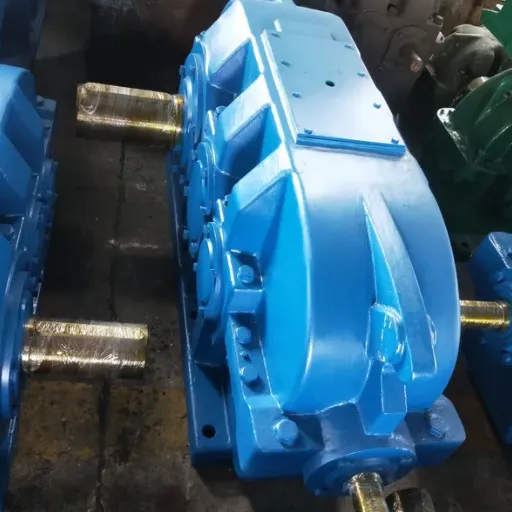

Edge-Drive Raw Mills

In an edge-drive arrangement, the motor and reducer sit beside the mill. The reducer's output pinion meshes with a girth gear ring bolted around the mill drum's circumference. This layout is common on small to mid-size raw mills and older installations.

Typical reducer choice: MBY or MBYX series edge-drive mill reducer.

The MBY series is widely used on cement raw meal mills, cement mills, and coal mills. These reducers feature high torque capacity, rigid housings, and output shafts engineered to drive the mill pinion under heavy radial load. The MBYX variant offers enhanced capacity for larger mills within the same edge-drive concept.

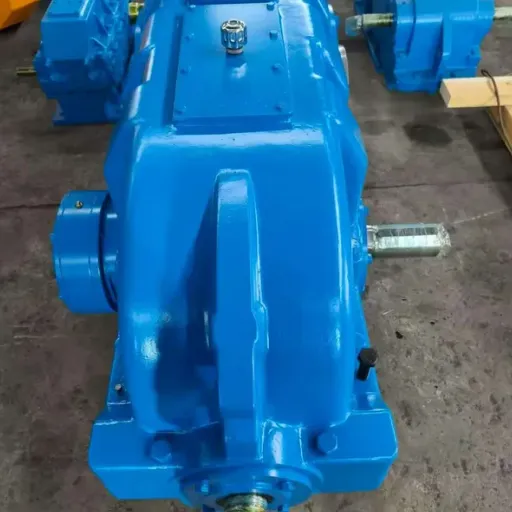

Center-Drive Raw Mills

In a center-drive arrangement, the drive system is located along the mill's centerline, often driving through a central gearbox. Larger modern raw mills favor this layout because it distributes load more evenly and avoids the very large girth gear an edge drive would require.

Typical reducer choice: JDX series center-drive mill reducer.

JDX reducers are built to absorb the heavy radial and axial loads that come with central mill drives. They're typically used on large cement and raw mills where an edge drive becomes impractical.

Which Arrangement Do You Have?

If you're replacing an existing reducer, match the original drive arrangement. If you're engineering a new mill, confirm the drive layout with the mill manufacturer before specifying the reducer. Getting this wrong means the reducer simply won't fit the mill.

Not sure which arrangement your mill uses? Send our engineers your mill specifications and we'll identify the right series.

How to Size a Raw Mill Reducer

Sizing a raw mill reducer correctly is the difference between a drive that runs for years and one that pits and fails in months. Work through these steps in order.

1. Define Output Torque

Output torque is the single most important figure. The reducer must deliver enough torque at drum speed to turn the fully loaded mill, even under worst-case conditions. Start from the mill's rated power and required drum speed, then calculate the torque the reducer's output shaft must supply.

Never size from motor power alone. Two mills with the same motor can demand very different reducer torque depending on drum speed and load.

2. Apply the Right Service Factor

The service factor is the engineering margin that accounts for shock, operating hours, and starting conditions. Raw mills are not steady-load machines. Media impacts, feed variation, and high starting torque all add stress.

For raw mill applications, service factors typically range from 1.5 to 2.5, depending on:

• Mill size and media load

• Material hardness and feed consistency

• Daily operating hours (many raw mills run near-continuously)

• Frequency of starts and stops

When in doubt, choose the higher service factor. It costs far less than replacing a failed reducer and the lost production that comes with it.

3. Confirm the Reduction Ratio

The reduction ratio links motor speed to drum speed. If your motor runs at 990 rpm and your mill needs 16 rpm, you need a total ratio around 62:1. Many raw mill drives achieve this in a two-stage arrangement: a primary reducer plus the pinion-to-girth-gear stage.

Select a reducer whose ratio, combined with the girth gear stage if present, brings the motor down to the target drum speed.

4. Check Mounting and Footprint

The reducer must fit the existing or planned foundation. Verify:

• Center height and base bolt pattern

• Input shaft orientation and coupling arrangement

• Output shaft diameter, length, and keyway

• Clearance for maintenance access and lubrication

For replacements, a dimensionally equivalent unit is usually the simplest path. For new mills, early coordination between the mill supplier and the reducer manufacturer prevents costly redesign late in the project.

5. Specify Material and Heat Treatment

Raw mill duty is severe, so material quality is non-negotiable. Look for:

• Case-hardened alloy steel gears with a tooth surface hardness of HRC 58-62

• Precision-ground or shaved tooth profiles for smooth load sharing

• Rigid cast iron or welded steel housings that hold alignment under load

• Bearings sized for rated load and L10 life

Ask your supplier for material certificates and heat treatment records. These documents separate an industrial-grade raw mill reducer from a light-duty unit that won't survive in a grinding circuit.

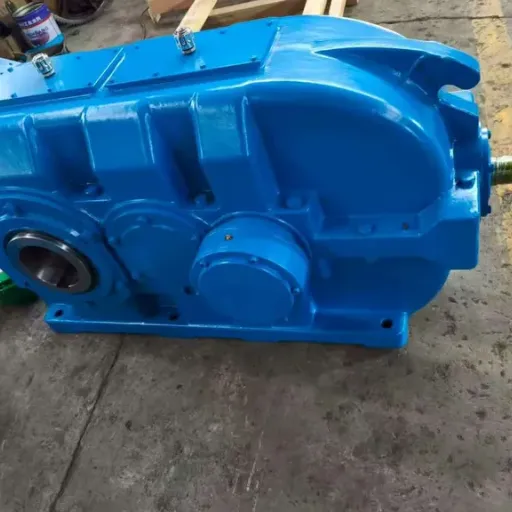

Standard vs. Custom Raw Mill Reducers

One of the biggest procurement decisions is whether to order a standard catalog reducer or request a custom unit.

When a Standard Model Works

If your mill's parameters match a catalog series, a standard reducer is usually the fastest and most cost-effective choice. Proven standard series include:

• MBY and MBYX series for edge-drive raw meal mills and cement mills

• JDX series for center-drive raw mills

• ZD series as auxiliary or smaller mill drives

Standard models have proven designs, shorter lead times, and lower cost. They're ideal for new installations that follow common mill sizes.

When You Need a Custom Reducer

Custom or non-standard reducers make sense when:

• The mill footprint differs from standard designs

• Shaft orientation, center height, or bolt pattern is unique

• The torque requirement or duty cycle exceeds catalog ratings

• You're retrofitting a reducer into an existing mill with tight constraints

• Ambient conditions involve high dust, heat, or humidity common in cement plants

At Jiangsu Manqi Machinery, our engineering team reviews your drawings and operating conditions to design custom reducers for exactly these situations. We provide drawing approvals before manufacturing so you can verify every dimension and interface before production starts.

Wondering whether your mill needs a standard or custom reducer? Send us your requirements and we'll recommend the most reliable option.

Common Raw Mill Reducer Mistakes to Avoid

Even experienced maintenance and procurement teams run into these problems.

Undersizing the Reducer

Selecting a reducer on motor power alone, without an adequate service factor, is the leading cause of early tooth pitting, bearing failure, and shaft fatigue. Always fold real operating conditions into the selection.

Ignoring Thermal Limits

Continuous raw mill operation generates heat. If the reducer can't dissipate it, lubricant breaks down and gear life drops fast. Confirm the unit is rated for your duty cycle and ambient temperature, and consider auxiliary cooling for hot climates.

Poor Installation Alignment

Even a high-quality reducer fails if misaligned. Follow the supplier's alignment tolerances at the coupling and pinion interfaces. A few tenths of a millimeter of misalignment multiplies bearing and gear stress.

Skipping Commissioning Checks

Before full-load operation, check oil level, rotation direction, vibration, noise, and bearing temperatures. A cement plant in Southeast Asia once called us after a brand-new reducer ran hot within days. The cause turned out to be a reversed rotation direction that starved the splash lubrication. A five-minute commissioning check would have caught it before any damage.

Frequently Asked Questions

What reducer is used for a raw mill?

Raw mills typically use heavy-duty mill reducers matched to the drive arrangement. Edge-drive raw mills use MBY or MBYX series reducers, while center-drive mills use the JDX series. The right choice depends on your mill's drive layout, output torque, and service factor.

What is the difference between a raw mill reducer and a ball mill reducer?

The terms overlap heavily. A raw mill is usually a type of ball or tube mill that grinds raw materials before the kiln, so raw mill reducers and ball mill reducers are often the same heavy-duty MBY, MBYX, or JDX series. The distinction is the application (raw material grinding vs. finish cement grinding), not the reducer family.

How much torque does a raw mill reducer need?

It depends on mill size, drum speed, and load. Rather than a single number, calculate the required output torque from your mill's rated power and drum speed, then apply a service factor of 1.5 to 2.5 for raw mill duty. A supplier can confirm the exact figure from your specifications.

Can a raw mill reducer be customized for an existing mill?

Yes. Custom reducers are common for retrofits where the footprint, shaft arrangement, or center height differs from catalog designs. Provide your drawings and operating conditions, and the manufacturer can engineer a unit to fit.

How long does a raw mill reducer last?

Service life depends on correct sizing, material quality, lubrication, and maintenance. A properly selected reducer with case-hardened gears (HRC 58-62), good lubrication, and correct alignment can run for many years in continuous cement duty. Undersizing or poor lubrication shortens life dramatically.

Conclusion

Selecting the right raw mill reducer starts with your drive arrangement and ends with honest operating data. Match MBY or MBYX series to edge-drive mills, JDX series to center-drive mills, and size on output torque plus a realistic service factor rather than motor power alone. When your footprint, load, or environment falls outside catalog limits, a custom reducer engineered to your drawings is the safer investment.

The reducers that last are the ones built from case-hardened alloy steel, precision-machined, inspected at every stage, and sized with real margin for cement duty. Cutting corners on any of these shows up later as downtime you can't afford.

At Jiangsu Manqi Machinery Co., Ltd., we manufacture MBY, MBYX, JDX, ZD, and custom mill reducers for cement and mining grinding applications from our facility in Taixing City. If you're specifying a reducer for a new raw mill or replacing an existing unit, send us your mill parameters and our engineers will recommend the right model or a custom solution.

Ready to select your raw mill reducer? Request a quote today and our engineering team will review your specifications and provide a technical recommendation.
