NGW Planetary Gear Reducer: A Selection Guide for Compact High-Torque Drives

An NGW planetary gear reducer is a single-stage epicyclic gearbox that uses a central sun gear, planet gears, and an internal ring gear to deliver high torque density in a compact inline package. The "NGW" designation refers to the internal meshing geometry: the planet gears mesh with both the sun gear and the ring gear, sharing load across multiple contact points for smooth, efficient power transmission.

If you are designing a conveyor, mixer, crane, or material handling system, you have probably faced the same trade-off: the drive needs high torque, but the machine frame leaves little room for a bulky gearbox. This guide explains how NGW planetary gear reducers solve that problem, how they compare to the two-stage NGW-S series, and what to check before specifying one.

You will learn the internal layout of an NGW reducer, its main advantages, where it performs best, and the selection steps that prevent premature failure. By the end, you will know whether an NGW planetary gear reducer is the right fit for your application and how to choose the correct size and ratio.

At Jiangsu Manqi Machinery, we manufacture NGW, NGW-S, NAD, NBD, NCD, NBZD, and NCZD series planetary reducers for customers in mining, cement, lifting, and general industry. Our engineers review application data before recommending a standard or custom unit.

Key Takeaways

• NGW planetary gear reducers are single-stage units with a sun gear, planet gears, and ring gear, ideal for compact, high-torque drives.

• NGW-S reducers add a second planetary stage for higher reduction ratios while keeping the inline, space-saving form factor.

• Best applications include conveyors, mixers, cranes, hoists, extruders, and material handling equipment where space is tight.

• Selection must cover output torque, service factor, reduction ratio, input speed, mounting position, and lubrication method.

• Proper alignment, oil fill, and scheduled inspection are essential for long service life.

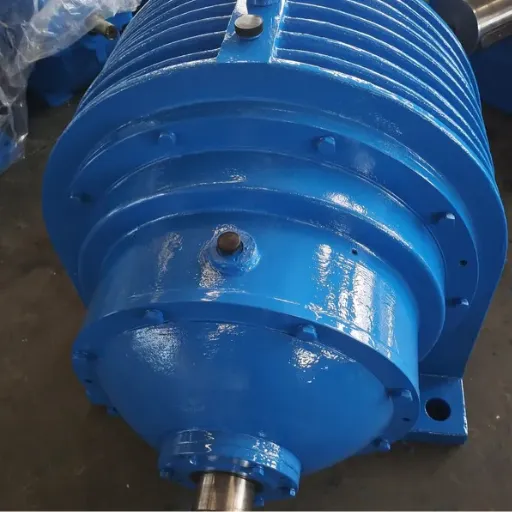

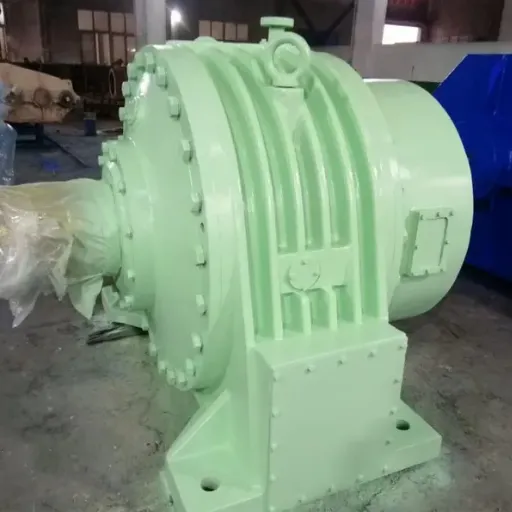

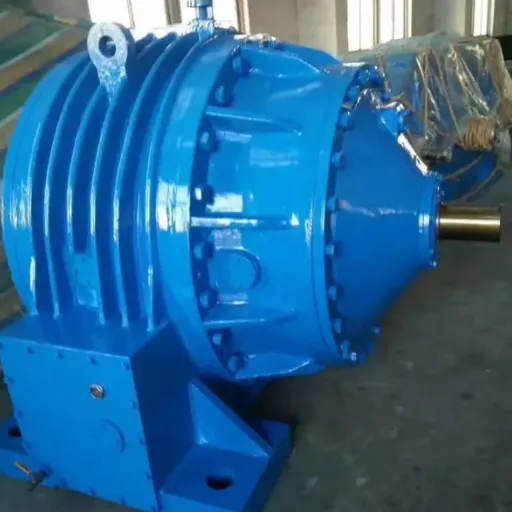

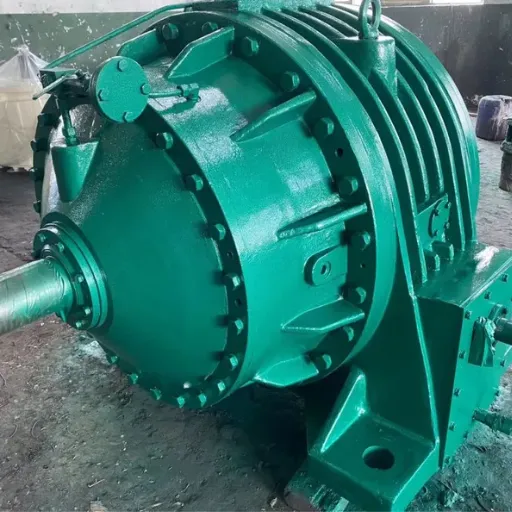

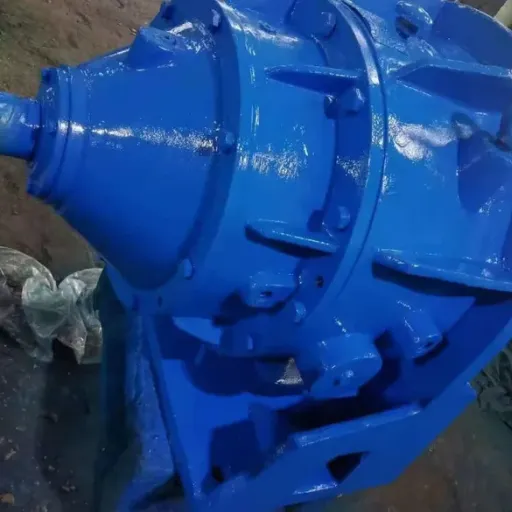

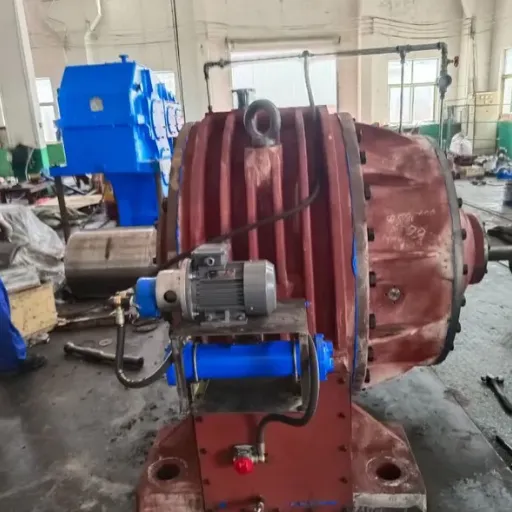

What Is an NGW Planetary Gear Reducer?

An NGW planetary gear reducer is a single-stage planetary gearbox designed for high torque density and compact installation. The name describes the gear arrangement: a sun gear at the center, multiple planet gears rotating around it, and an internal ring gear that meshes with the outer teeth of the planet gears.

The main components are:

• Sun gear: The input gear driven by the motor shaft.

• Planet gears: Three to five gears that mesh with the sun gear and ring gear simultaneously.

• Planet carrier: Holds the planet gears and provides the output shaft.

• Ring gear: A fixed internal gear that surrounds the planet gears.

Because torque is shared across several planet gears, each gear carries only a fraction of the total load. This allows the NGW reducer to be smaller and lighter than a conventional parallel-shaft reducer of the same rating. The inline input and output shafts also simplify motor mounting and machine integration.

NGW reducers typically cover reduction ratios from about 3:1 to 12:1 in a single stage. For higher ratios, manufacturers offer the NGW-S series, which stacks two planetary stages in the same housing.

How Does an NGW Planetary Gear Reducer Work?

Power enters through the sun gear. The sun gear drives each planet gear, and the planet gears roll against the stationary ring gear. The planet carrier, which holds the planet gears, rotates at a reduced speed and becomes the output.

The reduction ratio is determined by the number of teeth on the sun gear and ring gear. A larger ring gear relative to the sun gear produces a higher reduction ratio. In a typical NGW reducer, ratios range from 3:1 to 12:1, with common industrial ratios falling between 4:1 and 10:1.

The key engineering benefit is load sharing. Instead of one or two gear meshes carrying the full load, multiple planet gears share the torque. This reduces individual tooth stress and allows smaller gears to transmit more power. It also improves smoothness because the load is distributed around the gear train.

However, this load sharing depends on precision. Unequal planet spacing, tooth profile errors, or carrier deflection can shift load toward one planet gear. High-quality NGW reducers use precision machining, balanced planet spacing, and rigid carriers to maintain even load distribution.

Engineering Note
Ask your supplier for contact pattern and noise test reports. These documents confirm that the planet gears share load evenly and that the reducer runs within acceptable vibration limits.

NGW vs. NGW-S: When to Choose Each

The main difference between NGW and NGW-S planetary gear reducers is the number of stages. NGW is a single-stage design. NGW-S is a two-stage design that achieves higher reduction ratios in the same inline housing.

Choose NGW When:

• The required reduction ratio is between 3:1 and 12:1.

• Space is limited and a compact inline drive is preferred.

• Efficiency is a priority (single-stage designs lose less power).

• The application needs moderate output torque and speed reduction.

Choose NGW-S When:

• The required reduction ratio is between 12:1 and about 160:1.

• The application needs higher torque multiplication in one compact unit.

• A multi-motor arrangement or additional external reduction is impractical.

• The machine layout favors an inline drive but requires deep speed reduction.

Both series share the same compact, coaxial advantage. The choice comes down to ratio, torque, and speed requirements.

When Chen Wei, a design engineer at a packaging machinery OEM in Suzhou, selected a drive for a new high-speed carton conveyor in early 2026, he needed a 7:1 reduction ratio. The machine frame was narrow, and the motor had to sit inline with the conveyor roller. An NGW planetary gear reducer fit the space and provided the required torque without adding a right-angle gearbox or belt drive. The simplified layout reduced assembly time and eliminated a potential misalignment point.

Want to compare NGW models for your application? Browse our gear reducer catalog to view specifications and ratio options.

Key Advantages of NGW Planetary Gear Reducers

Compact Size and Inline Shafts

The biggest advantage of an NGW planetary gear reducer is its compact footprint. Because the input and output shafts are coaxial, the housing is shorter than an equivalent parallel-shaft reducer. This is valuable in machinery where every millimeter of frame space matters.

High Torque Density

Load sharing across multiple planet gears allows the NGW reducer to handle high torque in a small envelope. For the same output torque, an NGW reducer is often significantly smaller and lighter than a cylindrical reducer.

High Efficiency

Single-stage planetary reducers typically exceed 97% efficiency. Lower friction losses mean less heat generation and lower energy consumption over the life of the machine.

Smooth Operation

Multiple planet gears meshing simultaneously produce smoother torque transmission than single-mesh designs. This reduces vibration and noise, which is important in precision machinery and continuous-duty equipment.

Flexible Mounting

NGW reducers are available in foot-mounted, flange-mounted, and shaft-mounted configurations. The inline shaft arrangement simplifies coupling selection and motor mounting.

Common Applications of NGW Planetary Gear Reducers

NGW planetary gear reducers are used wherever high torque, compact size, and smooth operation are needed. Common applications include:

Conveyors and Material Handling

Belt conveyors, roller conveyors, and automated material handling systems use NGW reducers to drive rollers and pulleys in tight spaces. The compact housing fits inside conveyor frames, and the inline shafts simplify motor integration.

Mixers and Agitators

Industrial mixers need steady torque at low speed. NGW reducers provide the reduction and power density required without adding excessive weight to the mixer structure.

Cranes and Hoists

Compact crane trolleys and hoist mechanisms often use NGW planetary gear reducers when space is limited and shock-load capacity is required. For heavier lifting applications, the NAD or NCD series may be more appropriate.

Extruders and Packaging Machinery

Plastic extruders, food processing equipment, and packaging machines benefit from the smooth torque transmission and compact size of NGW reducers.

General Industrial Machinery

Robotics, indexing tables, rotary equipment, and test rigs use NGW reducers for precise, high-torque motion control.

When Li Na, a maintenance supervisor at a chemical plant in Zhejiang, replaced a noisy, oversized gearbox on a mixing tank in 2025, she chose an NGW planetary gear reducer to match the existing motor and reduce the overall drive footprint. The new unit ran quieter than the old parallel-shaft gearbox and freed up space for improved maintenance access around the tank.

How to Select an NGW Planetary Gear Reducer

Selecting the right NGW reducer requires more than matching a catalog ratio. Follow these steps to avoid undersizing or misapplication.

1. Define Output Torque Requirements

Calculate the torque required at the output shaft based on the driven machine's load. For conveyors, this includes belt tension, pulley radius, and friction. For mixers, it includes fluid resistance and blade geometry. Always use actual operating torque, not just motor nameplate torque.

2. Choose the Reduction Ratio

Select a ratio that brings motor speed down to the required output speed. NGW reducers cover approximately 3:1 to 12:1. If your application needs a higher ratio, consider NGW-S or a two-stage arrangement.

3. Apply the Correct Service Factor

The service factor accounts for load variability, shock, operating hours, and start frequency. For light, steady loads, a service factor of 1.2 to 1.5 may be sufficient. For heavy or shock-loaded applications, use 1.5 to 2.5 or higher. Undersizing the service factor leads to premature wear.

4. Confirm Input Speed

Check the allowable input speed for the reducer size. High-speed motors may require larger bearings or special lubrication. Exceeding the rated input speed reduces bearing life and increases operating temperature.

5. Select Mounting Position and Configuration

NGW reducers can be foot-mounted, flange-mounted, or shaft-mounted. Confirm that the mounting position is compatible with the lubrication system. Some positions require forced lubrication to ensure the top bearings receive adequate oil.

6. Specify Input and Output Interfaces

Match the motor shaft diameter, keyway, bolt pattern, and coupling type to your motor and driven equipment. For replacement projects, confirm dimensional interchangeability to avoid foundation modifications.

7. Consider Ambient Conditions

Temperature, dust, humidity, and chemical exposure affect sealing and lubrication. Specify the correct seals, protection rating, and oil grade for your environment.

When Wang Jun, a project engineer at a bulk material handling company in Hebei, sized an NGW planetary gear reducer for a new inclined belt conveyor in late 2025, he calculated the full-load torque including startup acceleration and belt sag. He selected a reducer with a service factor of 1.8 and verified the bearing L10 life at the actual duty cycle. The conveyor has run without unplanned downtime since commissioning.

Need help selecting the right NGW model? Contact our engineers with your torque, speed, and mounting requirements for a technical recommendation.

NGW Planetary Gear Reducer Series Overview

The NGW family includes several variants for different load and ratio requirements. Here is how the main series compare.

For most standard industrial applications within the 3:1 to 12:1 range, the NGW series is the most efficient and cost-effective choice. For heavier loads or higher ratios, move up to NGW-S or the heavy-duty NAD/NBD/NCD families.

Installation and Maintenance Best Practices

Proper installation and maintenance have a direct impact on reducer life. Follow these practices to get the most from your NGW planetary gear reducer.

Align Shafts Carefully

Even small misalignments increase bearing load and vibration. Use dial indicators or laser alignment tools to align the motor and driven equipment shafts within the supplier's specified tolerance.

Use the Correct Oil

Fill the reducer with the oil grade and viscosity recommended by the manufacturer. Oil choice depends on operating temperature, load, and speed. Incorrect oil reduces efficiency and accelerates wear.

Fill to the Right Level

Oil level affects lubrication and cooling. Overfilling causes overheating and seal leaks. Underfilling starves bearings and gears. Fill to the level specified for the mounting position.

Run a Commissioning Check

During the first hours of operation, monitor noise, vibration, bearing temperature, and oil leaks. Record baseline values and compare them during future inspections.

Inspect Regularly

Check oil level, seal condition, bolt tightness, and vibration quarterly. Change oil according to the manufacturer's schedule, and analyze oil samples in severe applications to detect wear early.

Common Mistakes to Avoid

Choosing by Ratio Alone

A reducer that matches the required ratio may still fail if it cannot handle the torque or duty cycle. Always verify torque capacity, service factor, and bearing life.

Ignoring Mounting Position

Mounting position affects oil flow. Installing an NGW reducer in the wrong orientation without adjusting lubrication can cause bearing failure.

Skipping the Service Factor

Using the nameplate motor power as the only load reference often leads to undersizing. Real applications have shock, inertia, and overload conditions that must be included.

Poor Alignment

Misalignment creates additional loads on bearings and shafts. Even high-quality reducers fail prematurely if installed out of alignment.

Neglecting Oil Changes

Oil degrades over time due to heat, contamination, and oxidation. Skipping scheduled oil changes shortens gear and bearing life.

Frequently Asked Questions

What does NGW stand for?

NGW refers to the internal meshing planetary gear arrangement used in this reducer series: a sun gear, planet gears, and an internal ring gear. It indicates a single-stage planetary reducer with coaxial input and output shafts.

What is the difference between NGW and NGW-S reducers?

NGW is a single-stage planetary reducer with ratios from about 3:1 to 12:1. NGW-S is a two-stage planetary reducer with ratios from about 12:1 to 160:1, designed for applications that need higher reduction in the same compact form.

Where are NGW planetary gear reducers used?

Common applications include conveyors, mixers, cranes, hoists, extruders, packaging machinery, and general industrial equipment where compact, high-torque drives are needed.

How do I select the right NGW reducer size?

Start with required output torque, then add the appropriate service factor for your load and duty cycle. Confirm the reduction ratio, input speed, mounting position, and interface dimensions match your motor and driven equipment.

Can NGW reducers be customized?

Yes. Custom or non-standard NGW planetary gear reducers can be engineered for special shaft arrangements, mounting footprints, ratios, and environmental conditions. At Jiangsu Manqi Machinery, our engineering team reviews customer requirements before manufacturing.

Conclusion

An NGW planetary gear reducer is an excellent choice when you need high torque, compact size, and inline shafts in a single-stage drive. By understanding how the sun, planet, and ring gears share load, and by selecting the right ratio, service factor, and mounting configuration, you can achieve reliable performance in conveyors, mixers, cranes, and many other industrial machines.

For ratios above 12:1, the NGW-S series offers the same compact benefits with deeper speed reduction. For heavier mining or cement applications, the NAD, NBD, or NCD heavy-duty planetary reducers may be more appropriate.

At Jiangsu Manqi Machinery, we manufacture NGW, NGW-S, and heavy-duty planetary reducer series from our facility in Taixing City. Whether you need a standard model or a custom-engineered drive, send us your specifications and our engineers will recommend the right solution.

Ready to specify your NGW planetary gear reducer? Contact our engineering team with your torque, speed, and mounting requirements, and we will provide a technical recommendation and quotation.
