Planetary Gearbox: A Complete Engineering Guide to Types, Applications, and Selection

A planetary gearbox is a compact speed reducer that uses a central sun gear, multiple planet gears, and an outer ring gear to distribute torque across several mesh points. This load-sharing design delivers high torque density in a small envelope, making planetary gearboxes the preferred choice when installation space is limited and output torque is high.

What if the gearbox you choose today could cut your machine's drive footprint by 40% without sacrificing torque? That is exactly what happened when a packaging machinery OEM in Eastern Europe replaced a conventional parallel-shaft gearbox with a planetary gearbox for a high-speed indexing conveyor. The shorter housing allowed a smaller machine frame, reduced material cost, and simplified conveyor layout. The critical detail was selecting the right ratio, service factor, and bearing configuration for continuous duty.

We agree that understanding gearbox technology matters before you specify one. In this guide, we promise to explain how a planetary gearbox works, which types are common in industrial applications, where they perform best, and what to check before buying. You will learn the difference between single-stage and multi-stage designs, how planetary gearboxes compare to cylindrical reducers, and which specifications to share with your supplier.

Need help matching a planetary gearbox to your application? Contact our engineering team with your torque, speed, and mounting requirements for a technical recommendation.

Key Takeaways

• A planetary gearbox shares load across multiple planet gears, delivering high torque density in a compact housing.

• Common types include single-stage NGW, two-stage NGW-S, and heavy-duty NAD/NBD/NCD and NBZD/NCZD planetary gearboxes.

• Planetary gearboxes excel in conveyors, mixers, lifting equipment, robotics, and mining machinery where space and torque are both critical.

• Selection depends on output torque, reduction ratio, service factor, mounting position, efficiency, and operating environment.

• Jiangsu Manqi Machinery manufactures NGW, NGW-S, NAD, NBD, NCD, NBZD, and NCZD planetary gearboxes from our facility in Taixing City.

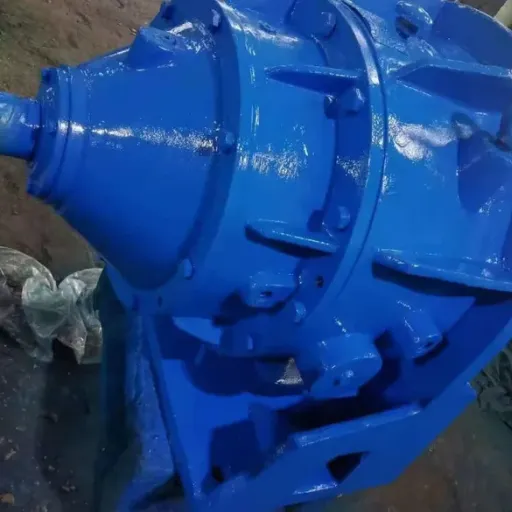

What Is a Planetary Gearbox?

A planetary gearbox, also called a planetary gear reducer or epicyclic gearbox, is a mechanical drive that reduces motor speed while multiplying output torque. It gets its name from the way planet gears orbit a central sun gear, similar to planets orbiting the sun. The planet gears also mesh with a stationary outer ring gear, sometimes called the annulus.

The main components are:

• Sun gear: The central input gear driven by the motor shaft.

• Planet gears: Multiple gears arranged around the sun gear that mesh with both the sun and the ring gear.

• Planet carrier: Holds the planet gears and delivers the reduced-speed output.

• Ring gear: The fixed outer gear that provides the reaction path for the planet gears.

Because torque is split among several planet gears, no single gear carries the full load. This is why a planetary gearbox can handle more torque in a smaller package than a conventional single-path gearbox. Engineers often specify a planetary gearbox when they need high power density, low backlash, or a coaxial input-output arrangement.

At Jiangsu Manqi Machinery, we manufacture planetary gearboxes in several standard series. Each series is designed for different torque ranges, ratios, and mounting configurations so customers can match the gearbox to the application rather than forcing a mismatched unit to fit.

How Does a Planetary Gearbox Work?

Power enters the planetary gearbox through the sun gear. The sun gear drives the planet gears, which rotate on their own axes while also walking around the inside of the fixed ring gear. The planet carrier, which holds the planet gears, turns at a lower speed than the input sun gear and delivers the output.

The reduction ratio depends mainly on the number of teeth on the sun gear and the ring gear. A larger ring gear relative to the sun gear produces a higher reduction ratio. Single-stage planetary gearboxes typically cover ratios from about 3:1 to 12:1. Two-stage and three-stage designs can reach ratios from 20:1 to over 100:1 while maintaining a compact inline form factor.

Efficiency remains high because the load is shared and the gear mesh paths are short. Single-stage planetary gearboxes often reach efficiencies above 97% under ideal conditions. Multi-stage designs are slightly less efficient due to additional mesh losses, but they still outperform many other high-ratio drive types.

The compact load path also reduces inertia compared to large parallel-shaft gears. Lower inertia is valuable in dynamic applications such as robotics, servo systems, indexing tables, and packaging machinery where fast acceleration and deceleration are required.

Types of Planetary Gearboxes

Planetary gearboxes come in several configurations, each optimized for different torque, ratio, and mounting requirements. Understanding the main planetary gearbox types helps you match the right unit to your machine.

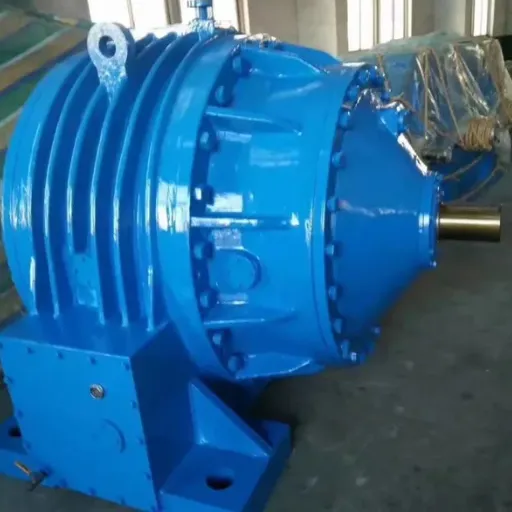

Single-Stage Planetary Gearbox

A single-stage planetary gearbox uses one set of planet gears meshing with one sun gear and one ring gear. It is the simplest and most common configuration. The NGW series is a widely used example of a single-stage planetary gearbox in industrial applications.

Single-stage planetary gearboxes are best when:

• The required reduction ratio is between 3:1 and 12:1.

• Space is limited but torque demand is moderate to high.

• A coaxial input-output shaft arrangement is preferred.

• Efficiency and low backlash are important.

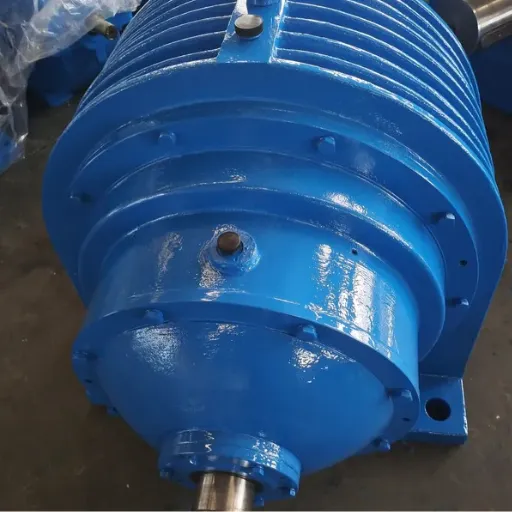

Two-Stage Planetary Gearbox

A two-stage planetary gearbox adds a second planetary gear set to achieve higher reduction ratios. The NGW-S series is a common example. The second stage keeps the inline configuration while significantly increasing the overall ratio.

Two-stage planetary gearboxes are best when:

• The required reduction ratio is between 12:1 and 100:1.

• Output speed must be much lower than motor speed.

• A compact inline design is still required.

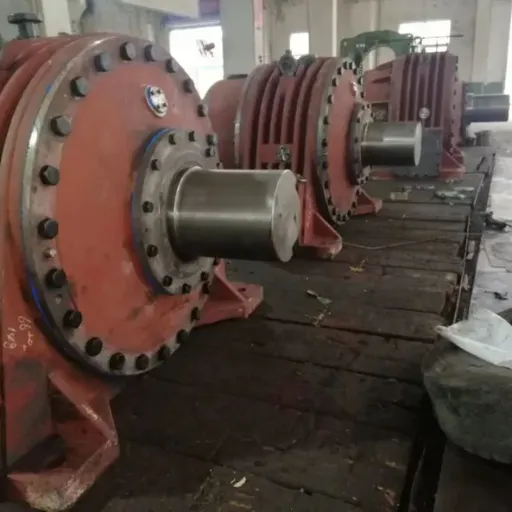

Heavy-Duty Planetary Gearbox

Heavy-duty planetary gearboxes are built for mining, material handling, and other severe-duty applications. The NAD, NBD, NCD, NBZD, and NCZD series fall into this category. They use larger planet gears, stronger carriers, and higher-capacity bearings to handle extreme torque and shock loads.

Heavy-duty planetary gearboxes are best when:

• Output torque is very high and shock loads are present.

• Continuous duty cycles exceed standard industrial norms.

• The application involves mining conveyors, crushers, hoists, or winches.

Right-Angle Planetary Gearbox

Some planetary gearboxes use a bevel or worm stage at the input to create a right-angle drive. This is useful when the motor must be mounted perpendicular to the output shaft. Right-angle planetary gearboxes are common in conveyor systems, packaging machinery, and compact automation equipment.

Planetary Gearbox Applications

Planetary gearboxes are used wherever high torque, compact size, and reliable power transmission are required. Their load-sharing design makes them especially useful in demanding industrial environments.

Common applications include:

• Mining and material handling: Conveyor drives, bucket wheel drives, and crusher feeders benefit from the high torque density and shock-load capacity of planetary gearboxes.

• Lifting and cranes: Crane hoists, trolleys, and winches use planetary gearboxes where compact size and high safety margins are critical.

• Mixers and extruders: Industrial mixers, extruders, and agitators require smooth, high-torque rotation that planetary gearboxes deliver efficiently.

• Robotics and automation: Robotic arms, indexing tables, and servo systems use low-backlash planetary gearboxes for precise positioning.

• Construction machinery: Winches, swing drives, and crawler drives use heavy-duty planetary gearboxes to handle high loads in harsh conditions.

• Wind energy: Yaw and pitch drives use planetary gearboxes to position turbine nacelles and blades.

When a machine designer in Southeast Asia recently upgraded a concrete mixer drive, the team switched from a helical gearbox to a planetary gearbox. The new drive reduced the gearbox length by 30%, freed space for maintenance access, and handled the mixing drum's high starting torque without issue. The key was selecting a planetary gearbox with the correct service factor and confirming the bearing ratings for intermittent shock loads.

Advantages of a Planetary Gearbox

Planetary gearboxes offer several advantages over conventional parallel-shaft designs. These advantages explain why they are specified across so many industries.

High Torque Density

Because torque is distributed across multiple planet gears, a planetary gearbox handles the same torque with smaller gears and a shorter housing than a cylindrical gearbox. This makes it ideal when installation space is constrained.

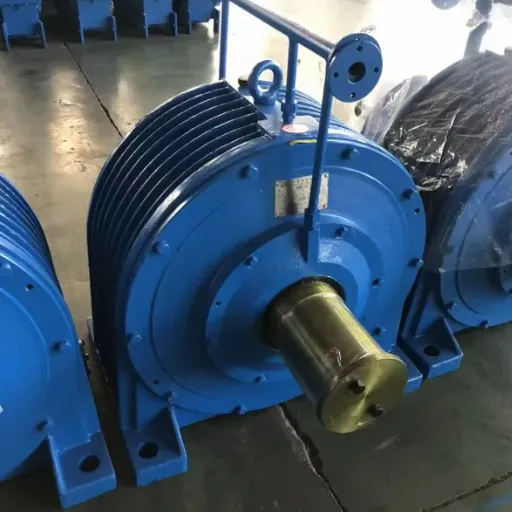

Compact and Lightweight

The coaxial arrangement means the input and output shafts are aligned, reducing the overall footprint. The smaller gear diameters also reduce weight, which matters in mobile machinery, robotics, and aerospace-related applications.

High Efficiency

Single-stage planetary gearboxes often exceed 97% efficiency. The short power path and shared load reduce friction losses compared to designs with long gear trains.

Low Backlash Potential

Precision-ground gears and tight manufacturing tolerances allow planetary gearboxes to achieve very low backlash. This is important in robotics, machine tools, and positioning systems.

Coaxial Input and Output

The inline shaft arrangement simplifies machine layout, coupling selection, and foundation design. It also reduces the bending moments that can occur with offset shaft designs.

Limitations and Challenges of Planetary Gearboxes

Planetary gearboxes are not the right choice for every application. Understanding their limitations helps you avoid specification mistakes.

Higher Precision Requirements

Load must be shared evenly among planet gears. Unequal load sharing causes premature wear, noise, and failure. This requires precise gear cutting, accurate planet spacing, and a stiff carrier. Buying from a qualified manufacturer with proper quality control is essential.

More Complex Maintenance

Accessing planet gears and bearings can require more disassembly than a parallel-shaft gearbox. However, with proper lubrication and sealed bearings, maintenance intervals are typically long.

Cost for Light-Duty Applications

For low-torque, low-duty applications, a simple cylindrical or worm gearbox may be more cost-effective. Planetary gearboxes deliver the most value when torque density and compact size matter.

Thermal Management

High power density means more heat generated in a smaller volume. In continuous-duty applications, confirm that the planetary gearbox is rated for your duty cycle and ambient temperature. Forced lubrication or cooling may be required in extreme cases.

How to Select a Planetary Gearbox

Selecting the right planetary gearbox requires more than matching a catalog model to motor power. The following factors determine whether the gearbox will perform reliably over its service life.

Define Output Torque and Reduction Ratio

Start with the required output torque and the motor input speed. The reduction ratio determines how much the motor speed must be reduced to achieve the required output speed. For example, a 1,450 rpm motor driving a conveyor at 145 rpm requires a 10:1 ratio.

Always calculate torque based on the actual load, not just motor power. A gearbox sized only by motor power may be undersized for the real operating conditions.

Apply the Correct Service Factor

The service factor accounts for shock loads, operating hours, startup frequency, and load variability. Planetary gearboxes in heavy-duty applications typically need service factors from 1.3 to 2.5. Undersizing to reduce cost often leads to early tooth pitting, bearing wear, or shaft fatigue.

Confirm Mounting and Environmental Requirements

Planetary gearboxes are available with foot mounting, flange mounting, shaft mounting, and custom interfaces. Confirm:

• Input shaft diameter and coupling arrangement.

• Output shaft diameter, length, and keyway dimensions.

• Mounting bolt patterns and center height.

• Ambient temperature, dust, moisture, and chemical exposure.

• Maintenance access and lubrication refill points.

Check Efficiency and Backlash

For precision applications, verify the backlash specification and efficiency rating. Low-backlash planetary gearboxes are more expensive but necessary for accurate positioning.

Ask About Quality and Documentation

Before placing an order, ask the supplier for material certificates, heat treatment records, inspection reports, and dimensional drawings. A reliable manufacturer will provide these documents without hesitation.

Need help sizing a planetary gearbox for your torque and speed requirements? Contact our engineering team with your application details for a technical recommendation.

Planetary Gearbox vs. Cylindrical Gearbox

Many engineers compare planetary gearboxes to cylindrical gearboxes when selecting a drive. The right choice depends on the application priorities.

Choose a planetary gearbox when space is tight, torque is high, and efficiency matters. Choose a cylindrical gearbox when simplicity, field serviceability, and lower initial cost are the main priorities.

At Jiangsu Manqi Machinery, we manufacture both planetary gearboxes and cylindrical gear reducers. If you are unsure which type fits your machine, send us your requirements and our engineers will recommend the most suitable solution.

Planetary Gearbox Maintenance Best Practices

Proper maintenance extends the service life of a planetary gearbox and prevents unplanned downtime. Follow these best practices for reliable operation.

Monitor Lubrication

Lubricant reduces friction, removes heat, and protects gear teeth and bearings. Check oil levels regularly and follow the manufacturer's recommended oil change intervals. Use the correct lubricant grade for the operating temperature and load.

Check for Abnormal Noise and Vibration

Unusual noise or vibration can indicate misalignment, bearing wear, or uneven load sharing. Address these symptoms early to avoid catastrophic failure.

Inspect Seals and Breathers

Damaged seals allow contamination to enter the gearbox, leading to abrasive wear. Ensure breathers are clear so pressure does not build inside the housing.

Verify Alignment

Even a high-quality planetary gearbox will fail if misaligned. Follow the supplier's alignment tolerances for coupling and shaft interfaces.

Record Operating Conditions

Track operating hours, load cycles, oil changes, and inspection results. This data helps predict maintenance needs and supports warranty claims if issues arise.

Frequently Asked Questions About Planetary Gearboxes

What is a planetary gearbox used for?

A planetary gearbox is used to reduce motor speed and increase output torque in applications where high torque density and compact size are important. Common uses include conveyors, mixers, cranes, robotics, construction machinery, and wind turbines.

What is the difference between a planetary gearbox and a normal gearbox?

A planetary gearbox uses a central sun gear, planet gears, and an outer ring gear to share load across multiple mesh points. A normal gearbox, such as a cylindrical gearbox, typically uses parallel shafts with one or two gear meshes. Planetary gearboxes are more compact and handle higher torque for their size.

What are the disadvantages of a planetary gearbox?

Planetary gearboxes require high manufacturing precision to ensure even load sharing. Maintenance can be more complex than parallel-shaft designs, and they may cost more for light-duty applications.

How do I choose a planetary gearbox?

Choose a planetary gearbox by defining the required output torque, reduction ratio, service factor, mounting position, and operating environment. Share these details with a qualified manufacturer for a technical recommendation.

What is the efficiency of a planetary gearbox?

Single-stage planetary gearboxes often exceed 97% efficiency. Multi-stage designs are slightly less efficient but still perform well compared to other high-ratio drive types.

Can a planetary gearbox be customized?

Yes. Manufacturers can customize shaft arrangements, flange sizes, mounting orientations, bearing selections, and sealing systems to fit specific machine requirements.

Conclusion

A planetary gearbox is one of the most efficient ways to deliver high torque in a compact industrial drive. Its sun-planet-ring gear layout shares load across multiple mesh points, giving it higher torque density, better efficiency, and a smaller footprint than most parallel-shaft alternatives. Whether you are designing a conveyor, mixer, crane, or robotic system, understanding how planetary gearboxes work helps you specify the right unit.

Selection depends on torque, ratio, service factor, mounting, and environment. Working with a qualified manufacturer ensures you receive a gearbox that is properly sized, manufactured to spec, and supported with documentation and after-sales service.

At Jiangsu Manqi Machinery, we manufacture NGW, NGW-S, NAD, NBD, NCD, NBZD, and NCZD planetary gearboxes from our facility in Taixing City. If you need help choosing a planetary gearbox for your application, contact our engineering team with your specifications and we will provide a technical recommendation and quotation.
