How to Select a Coal Mill Reducer for Cement and Power Plants

A coal mill reducer drives the grinding table or drum that pulverizes coal for cement kilns and power boilers. The right reducer must handle high torque, fine coal dust, vibration, and frequent load changes while keeping the mill running continuously.

But coal mills are among the harshest reducer applications in a cement plant. A maintenance manager at a cement works in Indonesia once traced repeated bearing failures in a coal mill reducer to inadequate sealing. Coal dust had entered the housing and contaminated the lubricant. The reducer had looked correct on paper, but it was not built for the environment. This guide explains how to select a coal mill reducer that survives the dust, heat, and shock loads of real coal grinding.

Key Takeaways

• Coal mill reducers must handle high torque, dust, vibration, and variable loads from coal grinding.

• Edge-drive ball-and-race coal mills often use MBY or MBYX series reducers; vertical coal mills need reducers matched to the grinding table drive.

• Sealing, lubrication, and housing protection are as important as torque capacity in coal mill environments.

• Service factors of 1.5 to 2.5 are typical depending on operating hours and coal hardness.

• Custom coal mill reducers solve footprint, shaft, and environmental sealing problems on retrofits.

What a Coal Mill Reducer Actually Does

A coal mill reducer converts motor speed into the low-speed, high-torque rotation needed to grind coal into fine powder. In a cement plant, this pulverized coal feeds the kiln burner. In a power plant, it feeds the boiler. The reducer sits between the motor and the mill's drive mechanism, which may be a horizontal grinding drum, a ball-and-race arrangement, or a vertical grinding table.

Coal grinding creates severe operating conditions for the reducer:

• High torque at low speed from the grinding media or table

• Variable load as coal feed rate and hardness change

• Heavy vibration from the grinding process

• Fine coal dust that can contaminate lubricant and seals

• Heat from the mill and surrounding process equipment

Because coal mills often run continuously, reducer reliability directly affects fuel supply and clinker or power production.

Want to compare reducer options for heavy industrial drives? View our gear reducer catalog to see standard and custom coal mill reducer solutions.

Types of Coal Mill Reducers

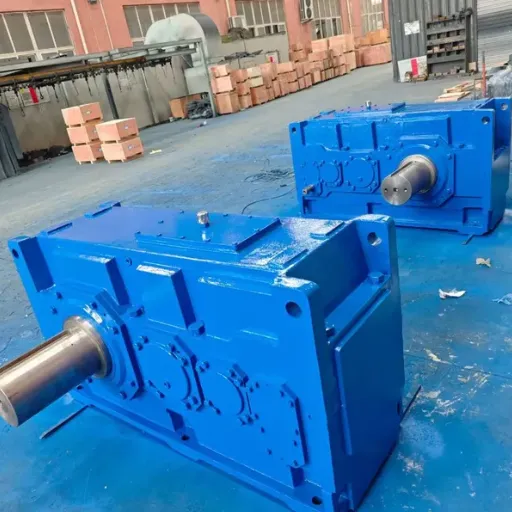

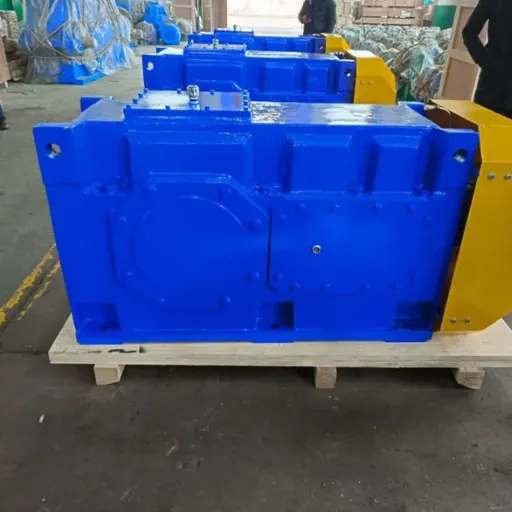

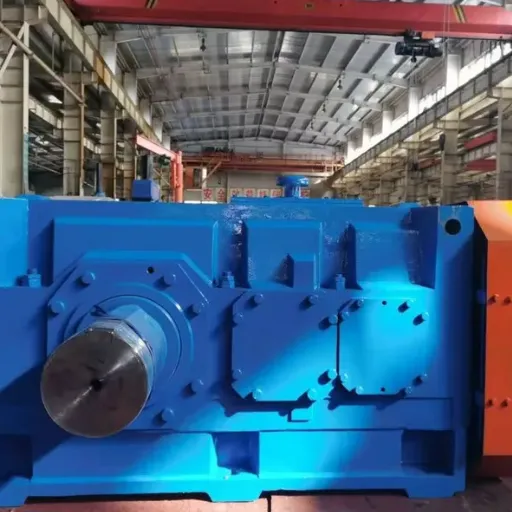

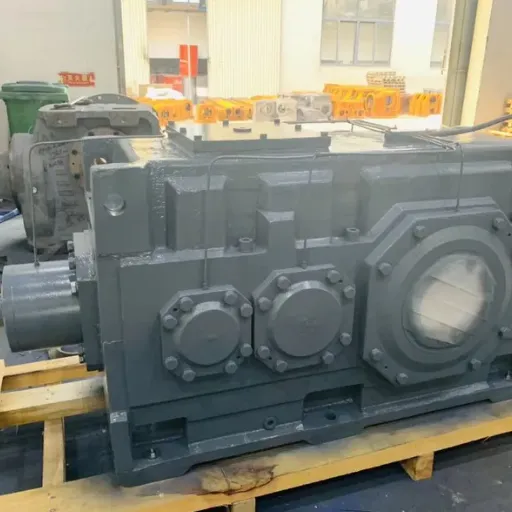

MBY and MBYX edge-drive coal mill reducers

Horizontal ball-and-race coal mills and similar edge-drive designs use a pinion that meshes with a girth gear around the mill drum. The reducer output shaft drives the pinion. MBY and MBYX series reducers are commonly used for this layout because they combine high torque capacity, rigid housings, and output shafts designed for mill pinion drives.

These reducers are widely used in cement plant coal mills and similar grinding equipment. The main selection parameters are output torque, reduction ratio, service factor, and the ability to maintain accurate pinion alignment under load.

Vertical coal mill reducers

Vertical coal mills use a grinding table driven by a central or side-mounted gear unit. The reducer must absorb the radial and axial loads created by the grinding rollers pressing down on the table. These reducers are typically large, slow-speed units with high torque capacity and robust bearings.

Vertical coal mill reducers often require custom engineering because the mill manufacturer designs the drive interface around a specific gear unit. Replacement projects must match the original mounting, shaft orientation, and center height.

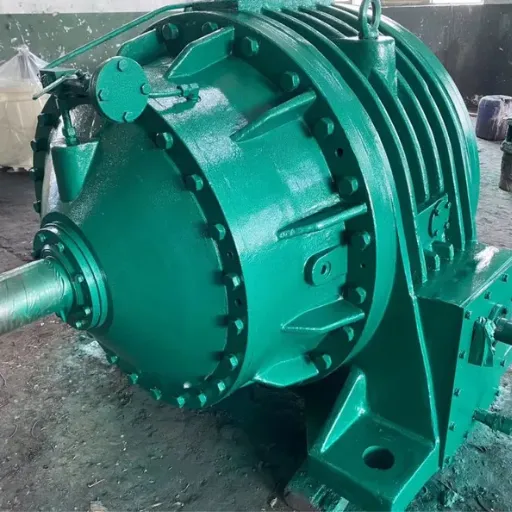

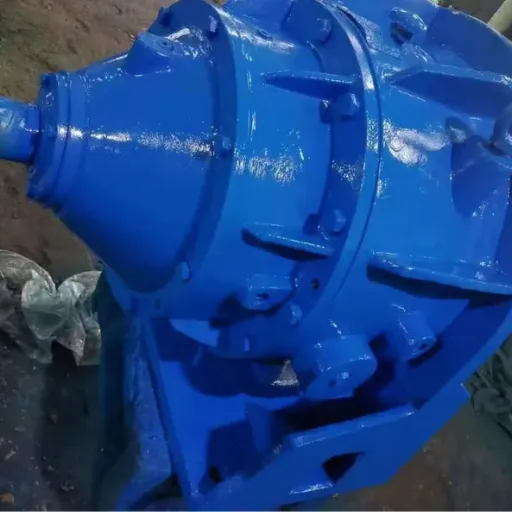

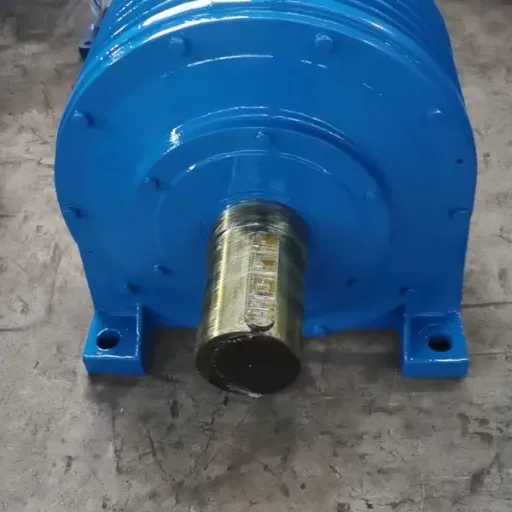

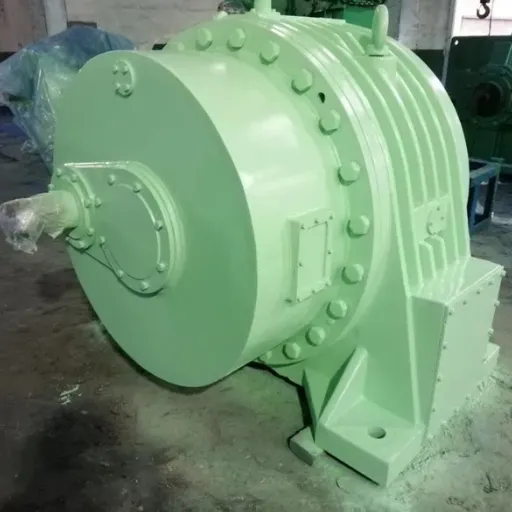

Coal pulverizer reducers

Pulverizer reducers drive the grinding elements that crush coal into fine particles for boiler combustion. The application demands high reliability, good sealing, and resistance to contamination. Some pulverizer designs use planetary reducers for compact torque density, while others use heavy-duty cylindrical or bevel-cylindrical units.

Key Selection Criteria for a Coal Mill Reducer

Output torque and service factor

Start with the required output torque at the mill. Coal grinding loads vary with coal hardness, moisture content, feed rate, and mill wear. For this reason, coal mill reducers should be sized with a service factor of at least 1.5 to 2.5, depending on:

• Daily operating hours

• Frequency of starts and stops

• Coal hardness and abrasiveness

• Mill condition and internal wear

• Required availability and redundancy

A higher service factor reduces the risk of tooth pitting, bearing fatigue, and shaft failure. In continuous coal grinding duty, undersizing the reducer is a common cause of unplanned outages.

Dust sealing and contamination protection

Coal dust is abrasive and can destroy a reducer if it enters the housing. Effective sealing is essential. Look for:

• Labyrinth seals that block dust without excessive friction

• Rubber or felt seals in cleaner auxiliary areas

• Breathers with filters to keep dust out of the oil reservoir

• Sealed bearing housings where practical

• Regular oil analysis to detect contamination early

When a cement plant in South Africa replaced a coal mill reducer after only 18 months, inspection showed that coal dust had mixed with the lubricating oil and formed an abrasive paste. The gear teeth and bearings had worn far faster than expected. The new reducer specification included upgraded seals and a scheduled oil sampling program.

Thermal rating and cooling

Coal mills generate heat, both from coal drying and from the grinding process itself. The reducer must dissipate heat effectively to prevent oil breakdown and thermal expansion that can affect gear mesh and bearing clearances. Confirm that the reducer's thermal rating matches the continuous duty conditions.

For high-temperature installations, options include:

• Larger oil volume for thermal mass

• External cooling coils or oil cooler

• Forced lubrication system

• High-temperature seals and gaskets

Mounting and footprint

For replacement projects, match the existing foundation, bolt pattern, center height, and shaft arrangement. For new mills, coordinate early with the mill supplier. A coal mill reducer that does not fit the mill interface creates costly delays during installation.

Always request dimensional drawings for approval before manufacturing. This step is especially important for custom or non-standard reducers.

Need help matching a reducer to your coal mill's torque and environment? Contact our engineers with your mill type, drive layout, and operating conditions for a technical recommendation.

Common Coal Mill Reducer Failures and Prevention

Lubricant contamination

Coal dust is the most common cause of premature reducer failure in coal mills. Once dust enters the oil, it acts as a grinding paste between gear teeth and bearing surfaces. Prevention requires effective seals, filtered breathers, and a proactive oil analysis program.

Tooth pitting and breakage

Pitting occurs when the gear surface cannot withstand repeated contact stress. It is usually caused by undersizing, poor material quality, or inadequate heat treatment. Breakage can follow pitting or result from shock loads. Case-hardened alloy steel gears with proper heat treatment are the standard for coal mill reducers.

Bearing failure

Bearings fail from overload, contamination, poor lubrication, or excessive heat. In coal mill reducers, all four factors can be present at once. Quality bearings sized for the actual load and L10 life, combined with clean oil and adequate cooling, are the best defense.

Misalignment and vibration

Coal mills vibrate. If the reducer is not rigidly mounted and properly aligned with the mill, vibration accelerates wear. A procurement team in India once installed a low-cost coal mill reducer that lacked the housing stiffness of the original unit. Vibration transmitted through the drive train caused bolt loosening and coupling damage within the first year.

When to Specify a Custom Coal Mill Reducer

Standard reducers work when the mill parameters match catalog specifications. Custom or non-standard coal mill reducers are needed when:

• The mill has a unique footprint or bolt pattern

• Shaft orientation, center height, or coupling arrangement differs from standard units

• The operating environment requires enhanced sealing or cooling

• The torque or service factor exceeds standard ratings

• The project is a retrofit with limited space or access

At Jiangsu Manqi Machinery, we review customer drawings, operating conditions, and environmental requirements before designing a custom reducer. We provide dimensional drawings for approval before production, so you can verify mounting, interfaces, and clearances.

For example, when a power plant in Eastern Europe needed to replace a vertical coal mill reducer, the original manufacturer had discontinued the model. Our engineering team measured the existing unit, matched the mounting and shaft interfaces, and produced a custom gear unit that fit without modifying the mill structure. The plant avoided a costly mill redesign and returned to full capacity.

FAQ

What is a coal mill reducer?

A coal mill reducer is a gearbox that reduces motor speed and increases torque to drive the grinding elements in a coal mill. It pulverizes coal into fine powder for cement kiln burners or power plant boilers.

What reducer is used in a coal mill?

Horizontal ball-and-race coal mills often use MBY or MBYX series edge-drive reducers. Vertical coal mills use specialized gear units designed for the grinding table drive. Coal pulverizers may use planetary or heavy-duty cylindrical reducers.

What service factor does a coal mill reducer need?

Service factors for coal mill reducers typically range from 1.5 to 2.5, depending on operating hours, coal hardness, feed variability, and required reliability.

How do you protect a coal mill reducer from coal dust?

Use labyrinth seals, filtered breathers, sealed bearing housings, and high-quality oil seals. Implement regular oil analysis and maintain proper lubricant cleanliness.

Can a coal mill reducer be customized?

Yes. Custom coal mill reducers can be engineered to match existing footprints, shaft arrangements, sealing requirements, and load conditions. The process typically includes drawing approval before manufacturing.

What causes premature coal mill reducer failure?

Common causes include lubricant contamination by coal dust, undersizing, poor material or heat treatment, inadequate cooling, misalignment, and excessive vibration.

What documentation should a coal mill reducer supplier provide?

You should receive material certificates, heat treatment records, dimensional drawings, inspection reports, and packing lists. For export orders, the supplier should also provide commercial invoices, certificates of origin, and shipping documents.

Conclusion

Selecting a coal mill reducer requires more than matching motor power to a catalog model. You need to account for torque, service factor, dust sealing, thermal rating, vibration, and mounting constraints. Horizontal ball-and-race mills often use MBY or MBYX edge-drive reducers. Vertical coal mills need gear units matched to the grinding table drive. Pulverizer applications demand reliable sealing and compact torque density.

A well-specified coal mill reducer keeps your fuel preparation system running and avoids the high cost of unplanned outages. Work with a supplier that understands coal mill environments and provides documented quality, drawing approval, and after-sales support.

At Jiangsu Manqi Machinery, we manufacture MBY, MBYX, and custom coal mill reducers from our facility in Taixing City. Our engineering team works with cement plants and power stations worldwide to match the right reducer to each mill's drive layout and operating conditions. If you are selecting a coal mill reducer for a new project or replacement, send us your requirements and we will provide a technical recommendation and quotation.

Ready to select a coal mill reducer built for your environment? Contact our engineering team with your mill type, drive arrangement, and operating conditions for a detailed proposal.
